ECDIS FMD-1200

Description

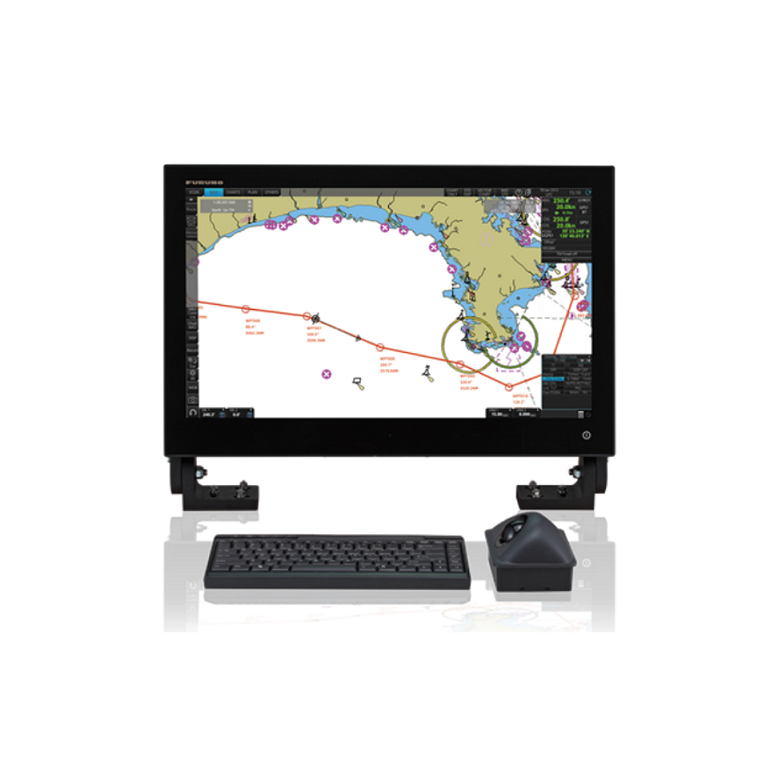

FMD-1200 Electronic Chart Display and Information System (ECDIS)

Product Description
The FMD-1200 is an advanced Electronic Chart Display and Information System (ECDIS) developed by Furuno, engineered to simplify route planning and navigation management while enhancing situational awareness and safety at sea. The system provides seamless integration with radar, AIS, GPS, and other bridge equipment, allowing operators to make fast, informed navigational decisions with ease and accuracy.

Key Features

• High-Resolution 12.1-inch Display – Bright and clear TFT LCD screen optimized for chart viewing in all lighting conditions.

• Intuitive User Interface – Simple, menu-driven operation with trackball control for efficient route planning and monitoring.

• Seamless Integration – Compatible with Furuno radar, AIS, GPS, and other navigation sensors for real-time data sharing.

• Chart Compatibility – Supports both ENC (S-57/S-63) and C-Map CM-93/3 vector charts.

• Advanced Route Planning Tools – Features safety contour settings, waypoint management, and automatic route monitoring.

• System Redundancy – Dual ECDIS configuration available for uninterrupted navigation operation.

• Data Recording and Playback – Enables voyage data logging for review and compliance purposes.

• Meets IMO and SOLAS Requirements – Fully compliant with IMO performance standards for ECDIS (IMO A.817(19), MSC.232(82)).

Technical Specifications

• Display: 12.1″ Color TFT LCD

• Power Supply: 24 VDC

• Chart Formats: ENC (S-57/S-63), C-Map CM-93/3

• Interfaces: IEC 61162-1/2 (NMEA 0183), Ethernet, USB

• Operating Temperature: -15°C to +55°C

• Dimensions (Display Unit): 308 (W) × 338 (H) × 173 (D) mm

Benefits

• Enhances navigational accuracy and operational efficiency.

• Simplifies route planning and monitoring for safe voyages.

• Ensures full compliance with international ECDIS standards.

• Designed for ease of use, training, and integration.

Recommended For
Commercial ships, passenger vessels, and maritime operators requiring a reliable, IMO-compliant ECDIS solution for safe and efficient navigation.
